Aluminum Silicate Pipe

No.LL-ASP

Aluminum silicate Pipe is made from selected high-quality bauxite chamotte. Melted in an electric furnace at over 2000℃, it is mechanically blown into fibers and uniformly mixed with special binders, oil-resistant agents, and water-repellent agents. The aluminum silicate blanket blank is then fed into a pipe rolling machine for rolling and formed after curing.

Product Features: Low thermal conductivity, low heat capacity, excellent seismic resistance and thermal stability, and easy construction.

Product Applications: Widely used for thermal insulation of heat pipelines in power plants, chemical industry, coking industry, shipping industry, heating supply and other fields.

Get The Latest Quote

Description

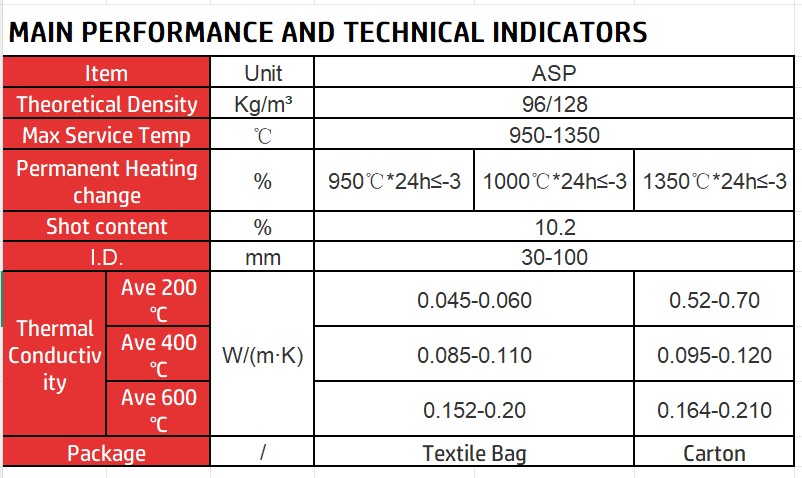

Technical Indicators Aluminum Silicate Pipe —— LiLuan Technology

Core Features
· Pre-formed Structure
· Superior Temperature Resistance
· Low Thermal Conductivity
· Rigid & Durable

Technical Advantages

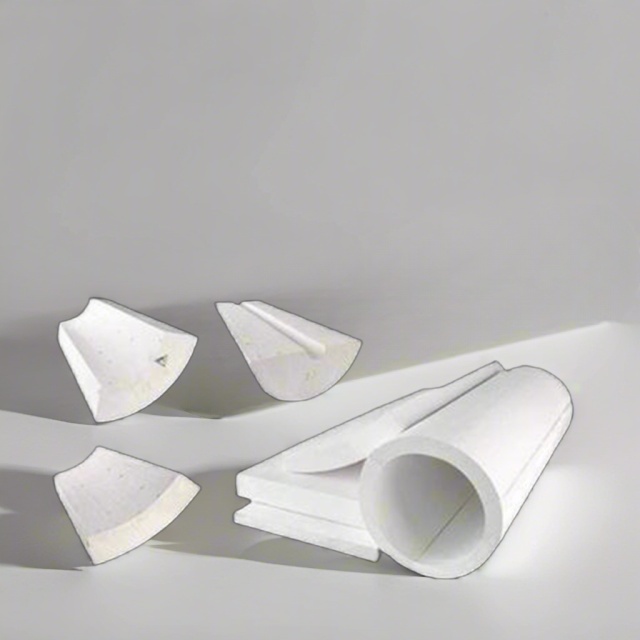

1）Rapid Installation
The pre-fabricated half-open or full-tube designs allow for on-site installation that is 3 to 5 times faster than manually wrapping needle-punched mats, significantly reducing labor costs.
2）Uniform Thickness
The molding process ensures that the thickness of the insulation layer is completely uniform around the circumference of the pipe, eliminating the risk of "thermal bridges" caused by uneven wrapping.
3）Vibration & Erosion Resistance
The fibers are tightly interwoven, making them resistant to dust generation or shedding even when exposed to high-speed airflow or equipment vibrations.
4）Excellent Electrical Insulation
Excellent dielectric properties make them suitable for complex electrothermal systems.

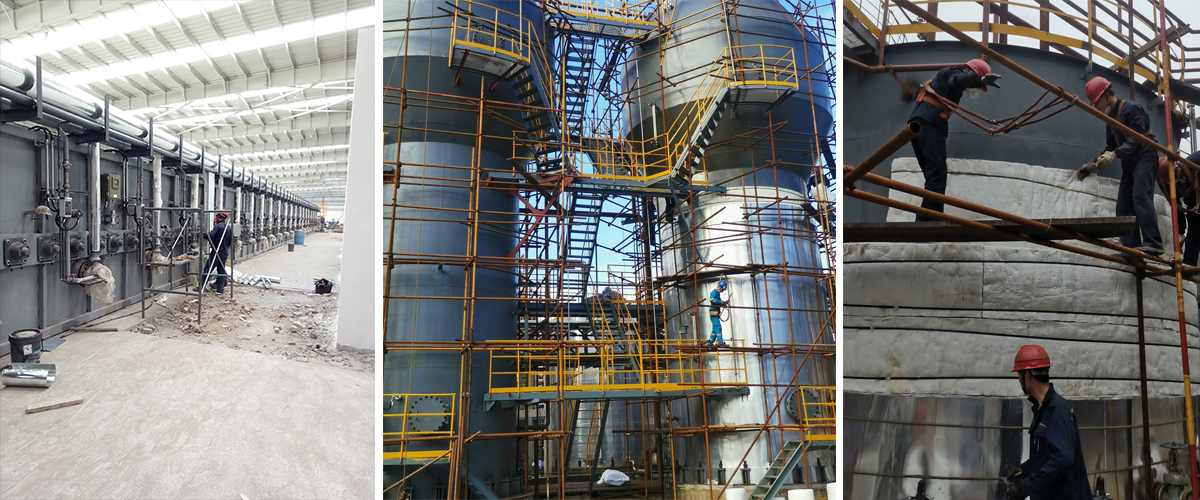

Common Applications
· High-Temp Steam Pipes：
Long-distance insulation of supercritical steam pipelines in thermal power plants and chemical plants.
· Metallurgical Systems：
Used for conveying high-temperature gases or as protective sleeves for thermal sensors in smelting equipment.
· Petrochemical Cracking Units：
Insulation of the connecting piping and venting systems for high-temperature reactors at the refinery.
· Furnace Sight Holes & Burners：
The heat-resistant sleeves are used as a burner nozzle in industrial furnaces.
