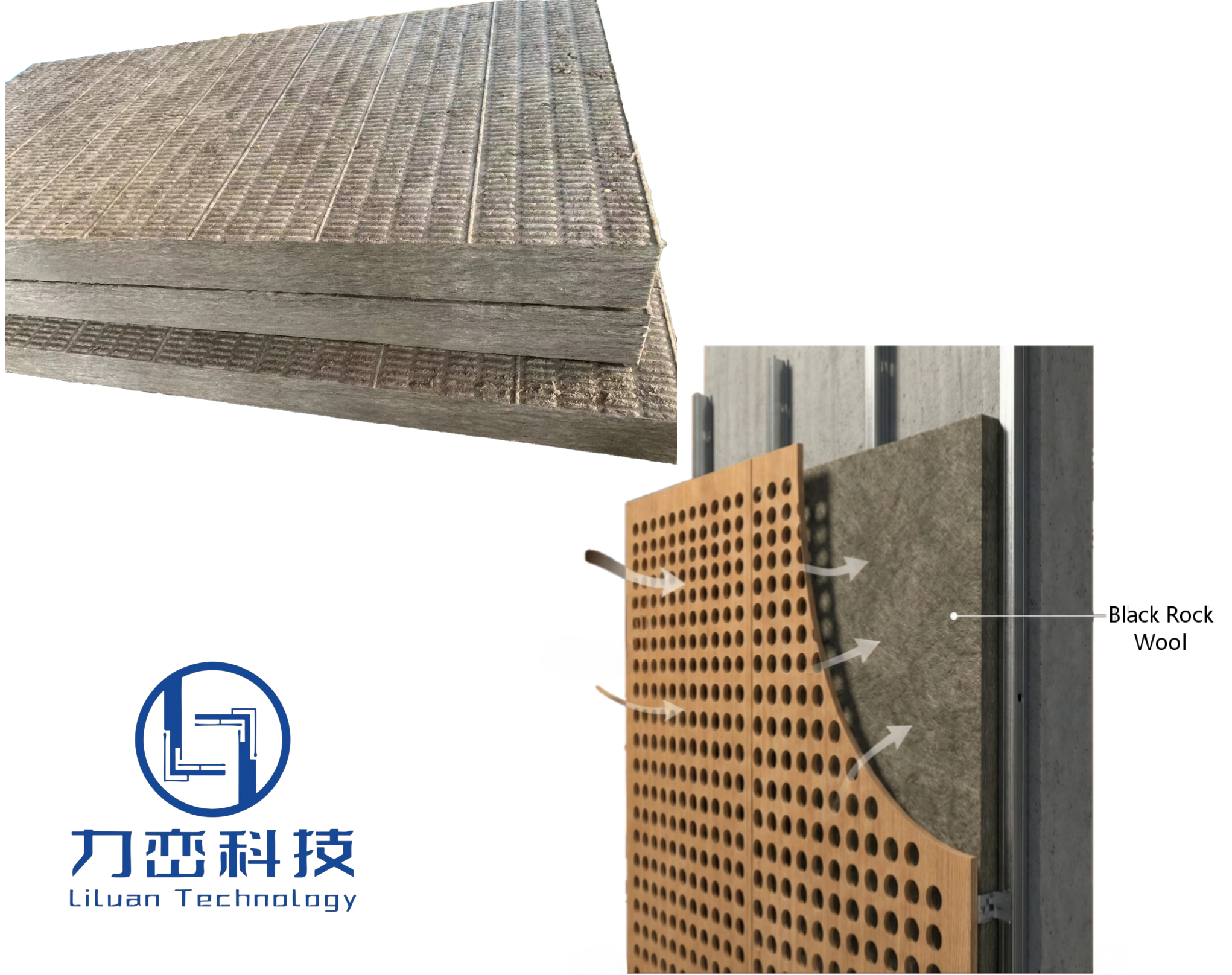

  • 3D diagram showing black rock wool board installed behind perforated wooden panel for sound absorption and fire protection - Liluan Technology

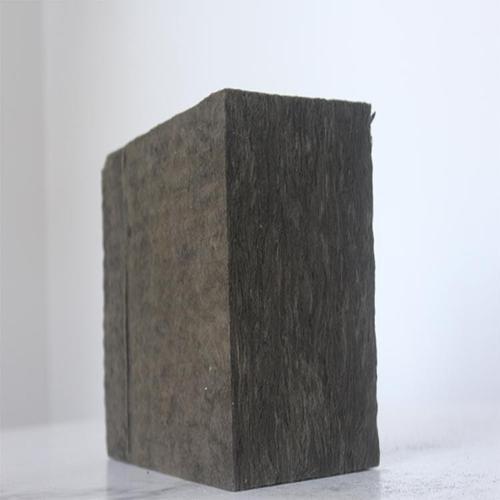

  • Black fireproof rock wool board single block side view showing thickness and dense fiber texture - A1 fire-rated acoustic insulation by Liluan Technology

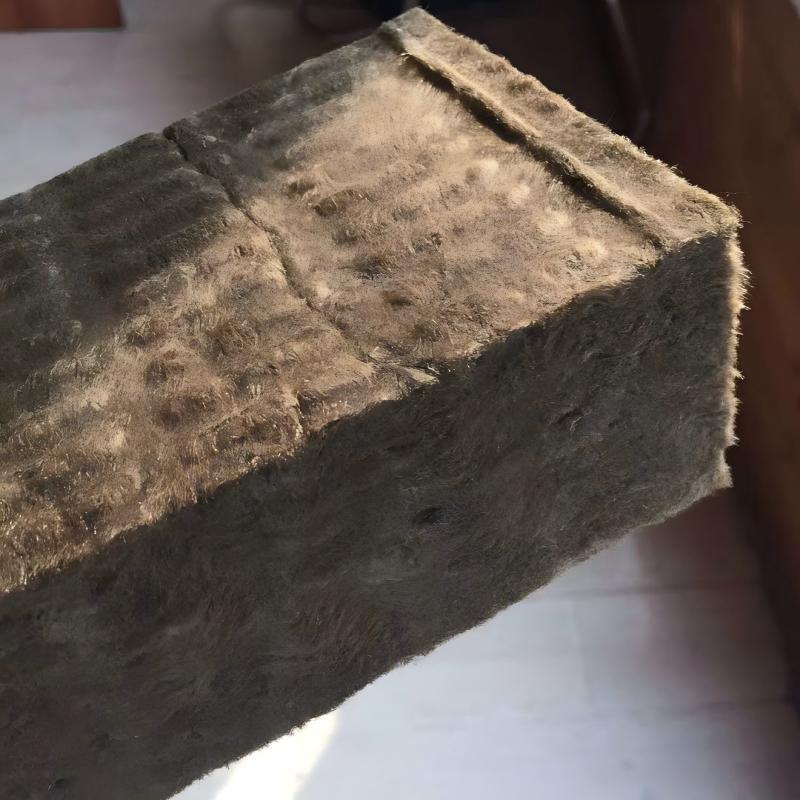

  • Close-up of black rock wool board cut surface showing fiber structure for fireproof and sound absorption applications-LiLuan Technology

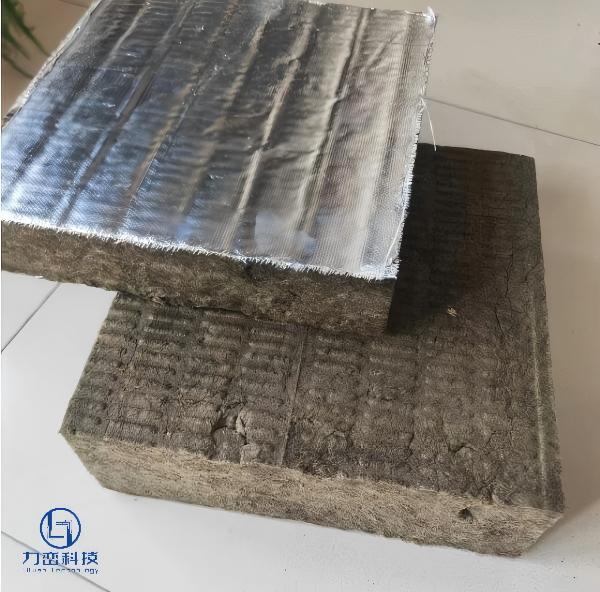

  • Black rock wool board and foil faced version stacked to show thickness and density for fireproof and acoustic applications - Liluan Technology

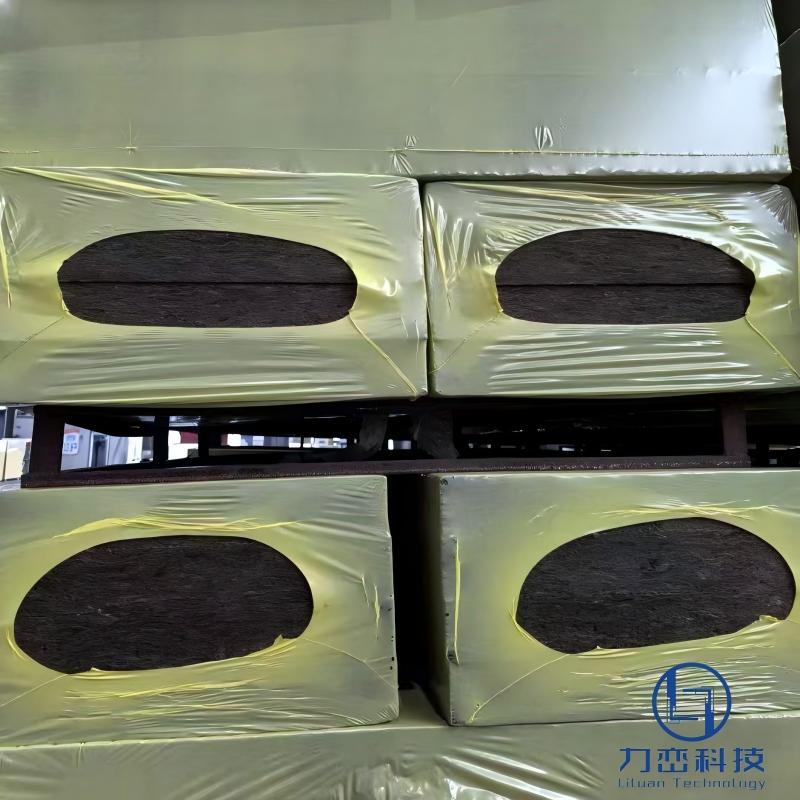

  • Storage of black fireproof rock wool board warehouse with yellow film by LiLuan Technology
  • 3D diagram showing black rock wool board installed behind perforated wooden panel for sound absorption and fire protection - Liluan Technology
  • Black fireproof rock wool board single block side view showing thickness and dense fiber texture - A1 fire-rated acoustic insulation by Liluan Technology
  • Close-up of black rock wool board cut surface showing fiber structure for fireproof and sound absorption applications-LiLuan Technology
  • Black rock wool board and foil faced version stacked to show thickness and density for fireproof and acoustic applications - Liluan Technology
  • Storage of black fireproof rock wool board warehouse with yellow film by LiLuan Technology

Black Rock Wool Board for Sound Absorption

No.LL-RWBB-02

Black Rock Wool Board is a high-performance acoustic insulation with a black glass fiber tissue facing laminated to a rock wool core.

Ideal for concealed applications behind perforated metal, gypsum, wood, or fabric panels in concert halls, theaters, studios, cinemas, and industrial-style offices. Provides superior sound absorption, A1 fire resistance, and eliminates light reflection through perforations.

L*W: 1200*600mm/2400*1200mm
Thk: 50~200mm
Density: 80k-200k
Brand: Dongwutianzi or OEM
(Can be customized)
  • 3D diagram showing black rock wool board installed behind perforated wooden panel for sound absorption and fire protection - Liluan Technology
  • Black fireproof rock wool board single block side view showing thickness and dense fiber texture - A1 fire-rated acoustic insulation by Liluan Technology
  • Close-up of black rock wool board cut surface showing fiber structure for fireproof and sound absorption applications-LiLuan Technology
  • Black rock wool board and foil faced version stacked to show thickness and density for fireproof and acoustic applications - Liluan Technology
  • Storage of black fireproof rock wool board warehouse with yellow film by LiLuan Technology

Description

Technical Diameters
Item Name LL-RWBB-01 Unit Standard
Shot content ≤4 % GB/T 5480
Thermal conductivity (25°C) ≤0.039 W/(m·k) GB/T 10294
Combustion performance Class A --- GB 8624-2012
Acidity coefficient ≥1.8 --- GB/T 5480
Hydrophobic rate ≥99 % GB/T 10299
Mass moisture absorption rate ≤1.0 % GB/T 5480
Water absorption (Partial Immersion) Short term (24h) ≤0.4 kg/m² GB/T 30805
Water absorption (Partial Immersion) Long term (28d) ≤2.0 kg/m² GB/T 30807
Noise reduction coefficient (NRC) ≥0.6 --- GB/T 18696.1
Dimensional stability ≤1.0 % GB/T 30806
Melting temperature ≥1000 °C ---
Thickness tolerance ±3 mm GB/T 5480
Right-angle degree of deviation ≤5 mm/m GB/T 5480
Flatness tolerance ≤5 mm GB/T 25975-2018

Product Advantages

1. Superior Acoustic Absorption

The dense, open-fiber structure provides excellent sound absorption across a wide frequency range. For a typical 50mm thick board (often installed behind perforated panels), the Noise Reduction Coefficient (NRC) commonly reaches 0.90–0.95, significantly reducing echo and reverberation for improved room acoustics in auditoriums, studios, and offices.

2. Effective Visual Concealment

The black glass fiber tissue facing offers very low light reflectance, creating a strong "shadow" effect. This is essential in exposed or perforated ceiling and wall systems (e.g., metal, timber slats, or open-cell designs), allowing concealment of structural elements, ducts, cables, and services while preserving the overall acoustic performance and achieving a clean, minimalist aesthetic.

3. Air Erosion and Fiber Retention

The factory-laminated black glass fiber tissue acts as a durable surface reinforcement, preventing fiber release or erosion even in environments with airflow (e.g., air-return systems in cinemas, stadiums, or exposed industrial ceilings). This ensures long-term cleanliness and maintains indoor air quality without fiber shedding.

4. Class A1 Non-Combustible Fire Performance

Manufactured from inorganic basalt rock, black-faced rock wool is Euroclass A1 non-combustible with a melting point exceeding 1000°C. It does not ignite, propagate flames, or emit toxic smoke, making it a safe choice for high-occupancy venues such as theaters, concert halls, schools, and public buildings where stringent fire regulations apply.

5. Hydrophobicity and Long-Term Stability

Factory-treated for water repellency, the boards resist moisture absorption and exhibit excellent dimensional stability with virtually no shrinkage, sagging, or warping over time. Being inorganic, they do not support mold or microbial growth, ensuring consistent acoustic and structural performance throughout the building's lifespan.

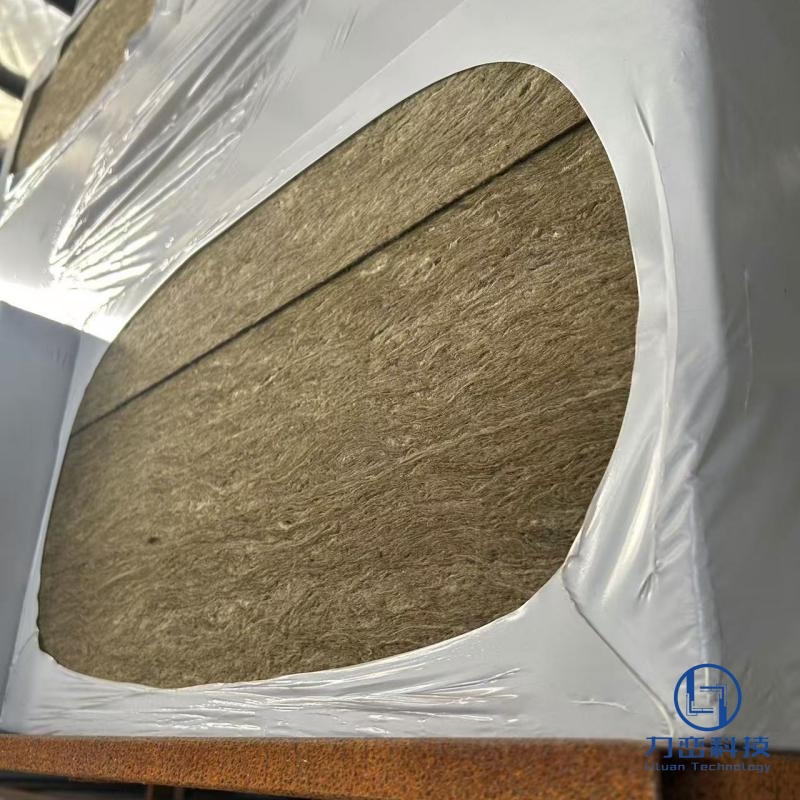

Black fireproof rock wool board stacked in warehouse with protective wrapping - high-density acoustic and fire insulation by Liluan Technology

About Us

  • Leading Rock Wool Manufacturer with Proven Industry Expertise
    Founded in 2009, Anhui Liluan Technology Co., Ltd. stands as a trusted name in mineral wool insulation manufacturing. We specialize in producing high-performance rock wool boards, blankets, and pipe insulation materials widely used in construction, industrial, and agricultural applications. With over 15 years of focused development, Liluan combines advanced manufacturing knowledge with strict quality standards, supporting global partners in achieving better thermal, fire, and sound performance.
  • Fully Integrated Production Lines Backed by Stringent Quality Control
    Our production base operates cutting-edge automated lines designed to maximize efficiency and ensure uniform quality. Each stage of the process—from raw material selection to final product packaging—is subject to rigorous inspections, meeting ISO 9001 and CE certification standards. Our integrated systems enable large-volume, custom-dimension production that adapts seamlessly to specific project requirements, ensuring both product performance and cost-efficiency.
  • Scalable Output with Global Market Reach
    With an annual output capacity sufficient to serve large-scale international contracts, Liluan is well-positioned to support long-term industrial supply chains. Our export network spans across Europe, the Middle East, Southeast Asia, and the Americas, reflecting a proven ability to deliver quality consistently and on time. Customers rely on our flexible logistics and responsive support team to simplify procurement and ensure reliability in every delivery.
  • Commitment to Sustainable Manufacturing and Customer-Centric Service
    Sustainability is embedded in our manufacturing processes—from energy-efficient kilns to the use of recyclable packaging. Our products enhance building insulation performance, thereby contributing to energy conservation and reducing carbon emissions. We offer personalized pre-sale consultation, technical support, and post-sale assistance, aligning every project with client goals. Whether you are sourcing for infrastructure, OEM supply, or retail channels, Liluan is your capable and responsible partner in insulation solutions.
    Packaged black fireproof rock wool board with protective wrapping and cut-out window revealing high-density material - ready for export by Liluan Technology

FAQ

1. Who are we?

Anhui Liluan Technology Co., Ltd. is a specialized manufacturer of high-quality rock wool insulation materials, established in 2009, with a focus on delivering reliable solutions for various industries.

2. How can we guarantee quality?
Our advanced automated production lines, comprehensive quality control systems, and adherence to international standards ensure consistent and superior product quality.

3. What density of rock wool is best for fireproof sandwich panels?
For structural integrity and fire rating, we recommend a density between 100k and 140k, which provides the optimal balance between thermal resistance and compressive strength.

4. Does your rock wool core material support metal bonding?
Yes, our boards have a low-dust surface and consistent thickness tolerance, ensuring a high-strength bond with steel skins when using standard polyurethane or phenolic adhesives.

5. What services can we provide?
We provide comprehensive services, including product consultation, customized design, efficient production, quality assurance, and reliable logistics support to ensure client success.
