Ceramic Fiber Modules

No.LL-ASM

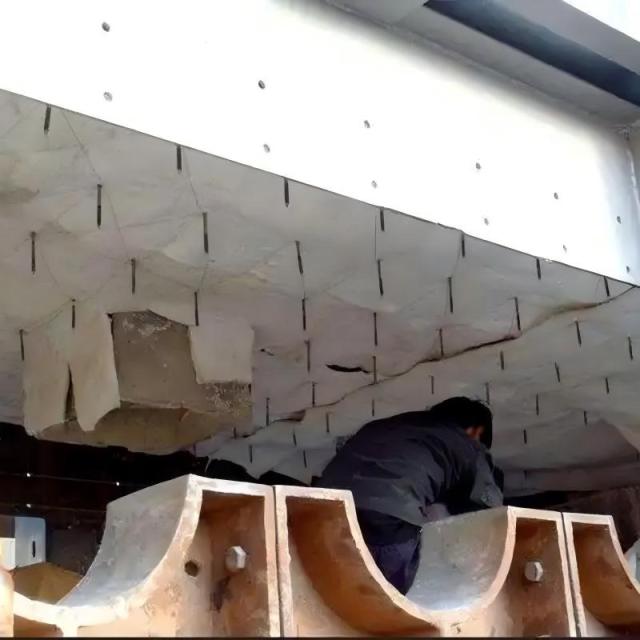

Ceramic fiber modules are made from matching ceramic fiber needled blankets, processed via specialized machinery to meet structural and dimensional requirements. Pre-compressed during production, they expand into a seamless integral lining after installation, directly fixable to industrial kiln shell anchor pins.

Get The Latest Quote

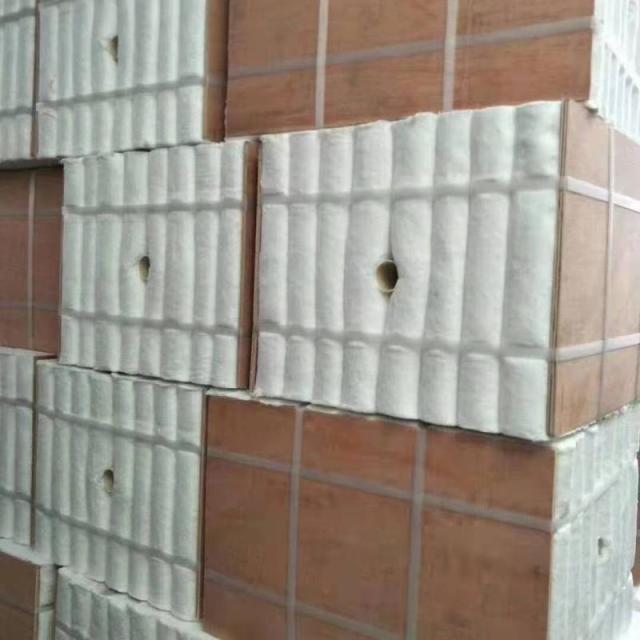

$Stacked aluminum silicate modules with pre-drilled anchor holes – preformed high-temperature refractory insulation modules by Liluan Technology$

Description

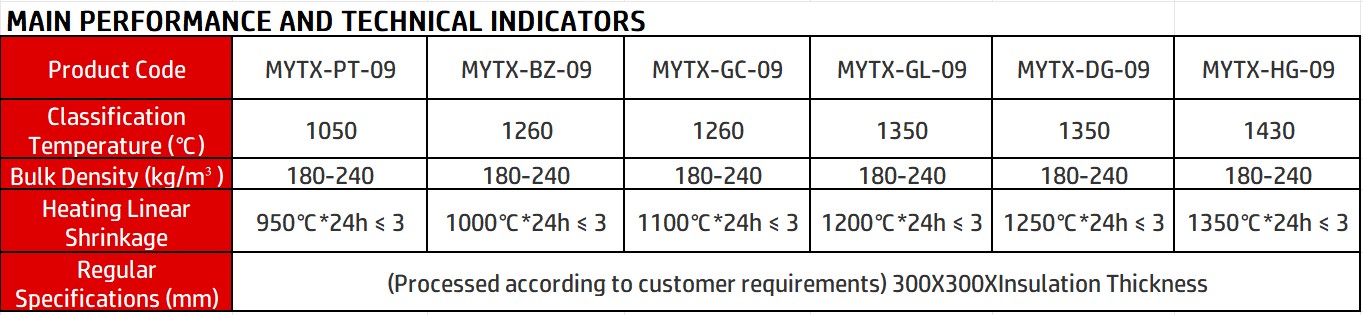

Technical Indicators Aluminum Silicate Modules——LiLuan Technology

Note:

The above values are average figures measured in accordance with test standards, which will fluctuate within a certain range and are not guaranteed values. For more product details, please feel free to contact us.

Core Advantages

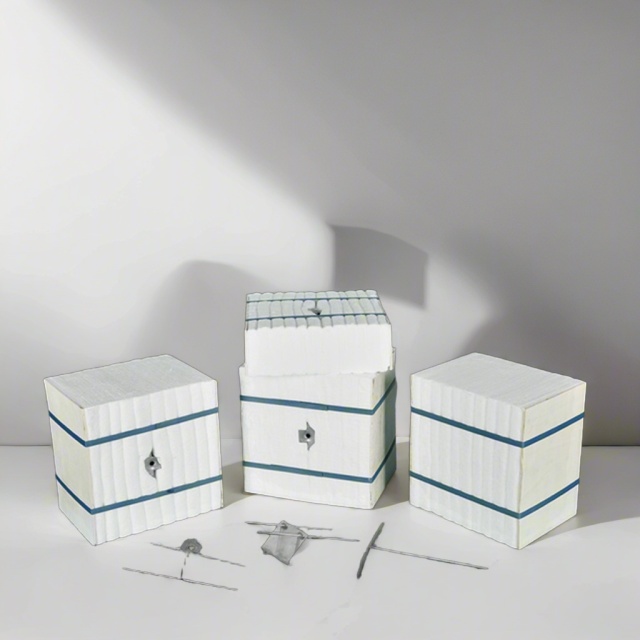

Flexible installation: Parallel or tessellated arrangement optional via back-mounted anchors.
Seamless & durable: Folds expand to fit tightly, no gaps; elastic texture resists mechanical impact.
Energy-saving & efficient: Low thermal conductivity cuts energy costs; ready for use immediately (no drying/curing).
Safe anchoring: Anchors stay away from hot surfaces, protecting metal parts.

Technical Advantages

1）Rapid Construction
Modular installation is several times faster than traditional layer-by-layer lining, significantly shortening furnace downtime for maintenance and reducing labor costs.
2）Superior Sealing
Once expanded, the modules are compressed tightly together to form a smooth, continuous insulating surface, effectively preventing high-temperature flue gas from eroding the furnace shell.
3）Resistance to Gas Erosion
The compressed fiber surface is harder and can withstand the impact of high-speed gas flows inside the kiln.
4）Customizable Shapes

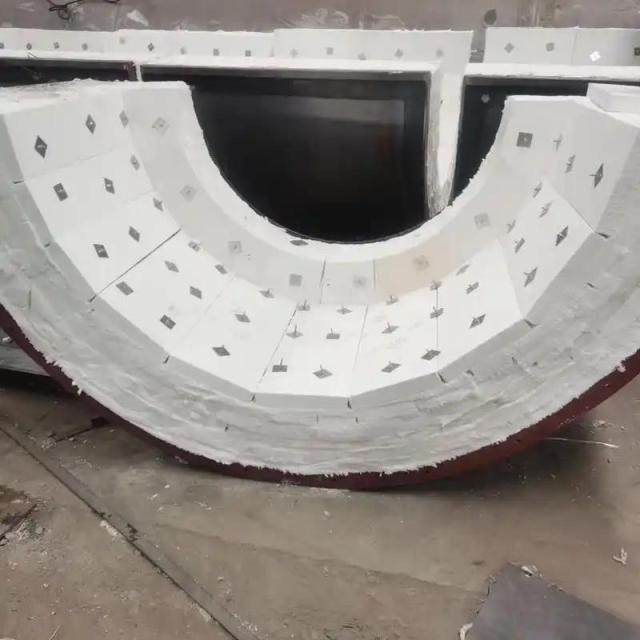

The folding method and dimensions can be customized to match the furnace structure, accommodating various irregularly shaped furnace roofs and walls.

Common Applications

Metallurgy, Non-ferrous Metals
Machinery, Building Materials
Petroleum, Chemical Industry

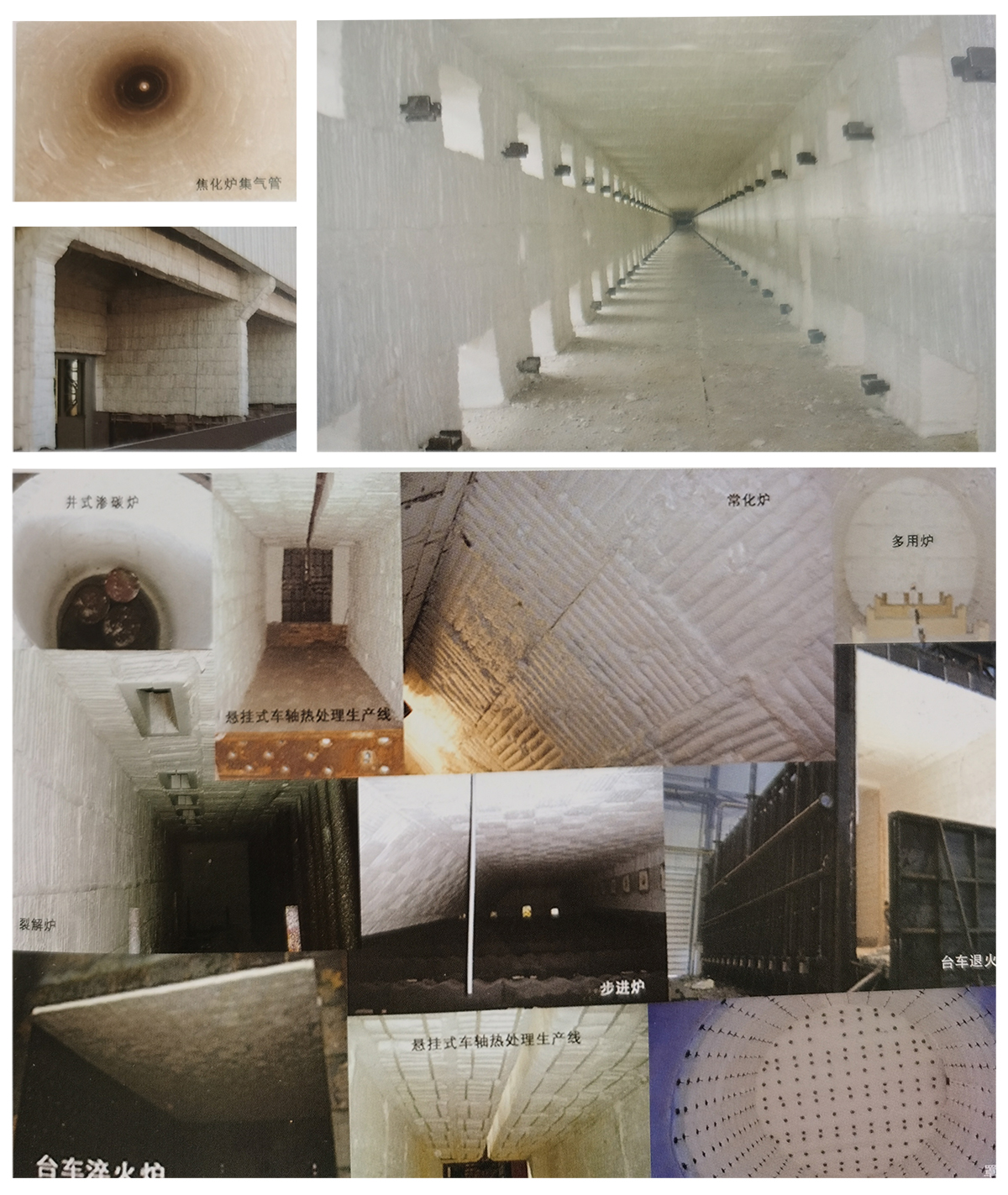

Application Cases Aluminum Silicate Modules——LiLuan Technology

FAQ
1. Who are we?
Anhui Liluan Technology Co., Ltd. is a specialised manufacturer of high-quality insulation materials, established in 2009, with a focus on delivering reliable solutions for various industries.

2. What key benefits do ceramic fiber modules offer compared with traditional refractory linings?

With pre-compressed fold structure for gap-free lining, they deliver much lower thermal conductivity and heat capacity, cutting energy consumption by 20–40%. They are lightweight and quick to install, shortening furnace construction cycles by about 50% with no drying or curing required.

3. What temperature grades and industrial scenarios are these modules suitable for?

We offer 1260℃ standard grade, 1400℃ high-alumina grade, and 1430℃ zirconia-containing grade. They are widely applied to kiln, heating furnace, cracking furnace, and RTO incinerator linings in metallurgy, petrochemical, and ceramic industries.

4. Do you support custom sizes and matching anchoring solutions for furnace projects?

Yes. Standard sizes are in stock for fast delivery. Custom dimensions, densities, and heat-resistant steel anchoring hardware are available, with installation guidance support for bulk industrial furnace projects.
