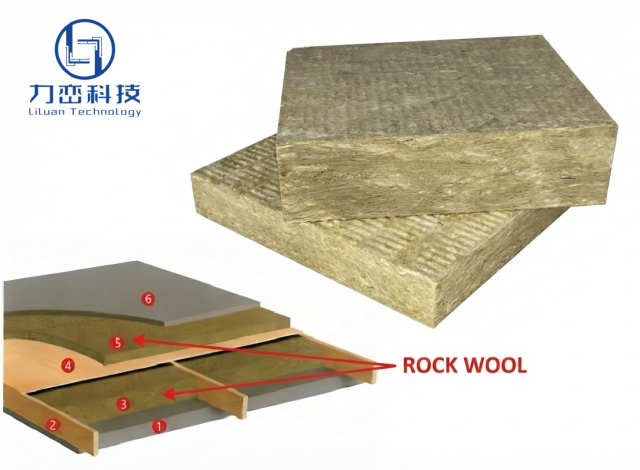

  • 3D structural diagram showing rock wool board installation layers in slab insulation system - Liluan Technology

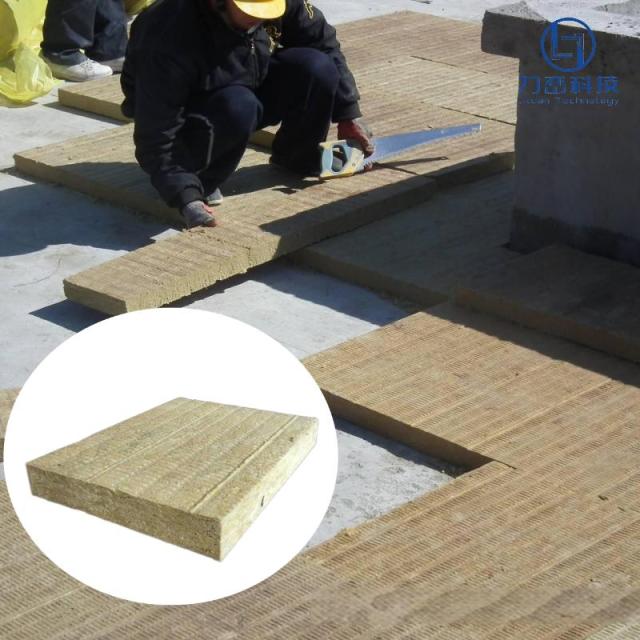

  • installation of walkable rock wool insulation boards anhui liluan

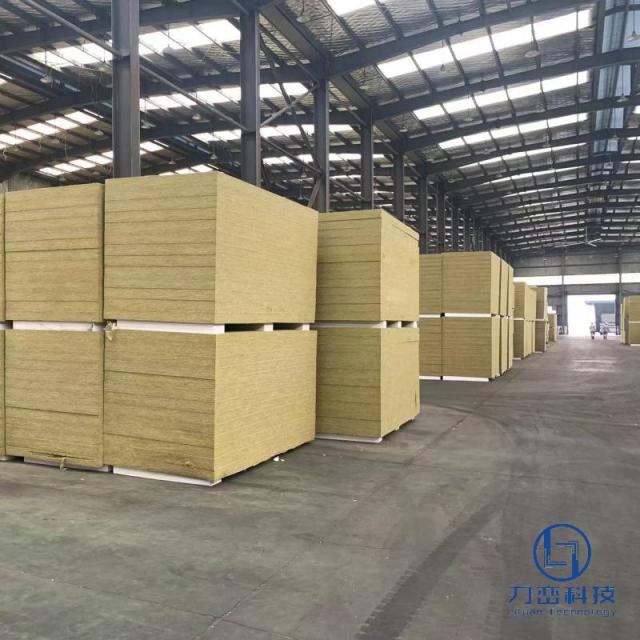

  • Large warehouse storage of high-density rock wool boards for slab insulation at Anhui Liluan Technology factory

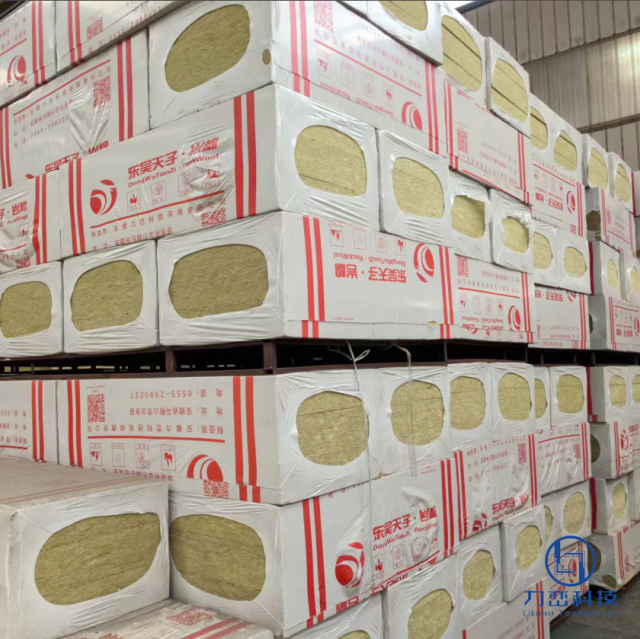

  • Branded and packaged rock wool boards stacked in warehouse ready for global shipment by Liluan Technology

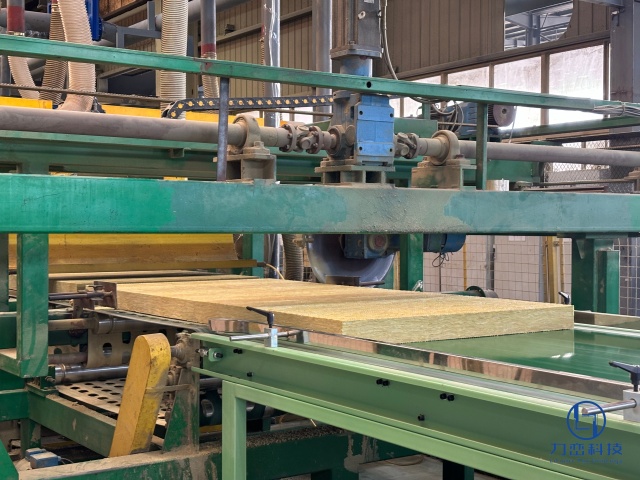

  • Automated production line manufacturing high-density rock wool boards for slab insulation at Liluan factory

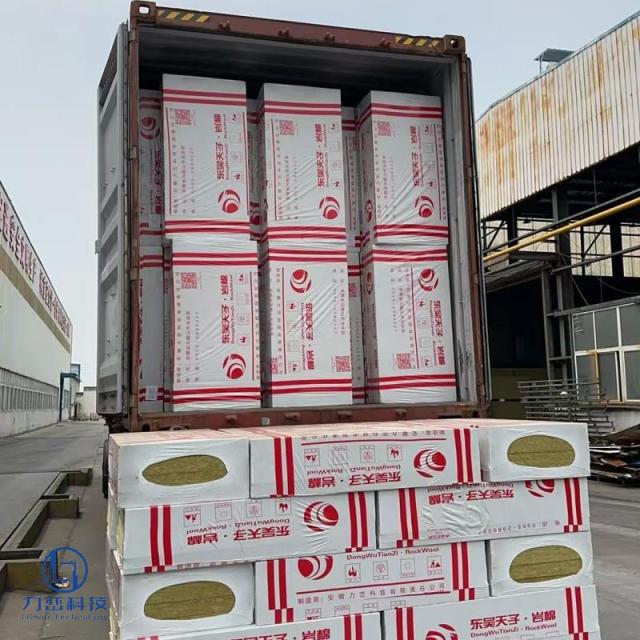

  • Rock wool boards loaded into shipping container for international export from Liluan Technology factory
  • 3D structural diagram showing rock wool board installation layers in slab insulation system - Liluan Technology
  • installation of walkable rock wool insulation boards anhui liluan
  • Large warehouse storage of high-density rock wool boards for slab insulation at Anhui Liluan Technology factory
  • Branded and packaged rock wool boards stacked in warehouse ready for global shipment by Liluan Technology
  • Automated production line manufacturing high-density rock wool boards for slab insulation at Liluan factory
  • Rock wool boards loaded into shipping container for international export from Liluan Technology factory

Rock Wool Board for Slab Insulation

No.LL-RWBS-05

Rock Wool Board for Slab Insulation (also known as Floor or Inter-floor Insulation) is a high-density, rigid mineral wool solution designed for thermal and acoustic separation between different levels of a building. It is commonly installed on ground-contact floors, above unheated basements, or between residential floors to create a "floating floor" system.
Unlike wall or roof insulation, slab insulation is uniquely engineered to balance thermal resistance with impact sound insulation and compressive load support.

L*W: 1200*600mm
Thk: 50~200mm
Density: 100k-140k
Brand: Dongwutianzi or OEM
(Can be customized)



  • 3D structural diagram showing rock wool board installation layers in slab insulation system - Liluan Technology
  • installation of walkable rock wool insulation boards anhui liluan
  • Large warehouse storage of high-density rock wool boards for slab insulation at Anhui Liluan Technology factory
  • Branded and packaged rock wool boards stacked in warehouse ready for global shipment by Liluan Technology
  • Automated production line manufacturing high-density rock wool boards for slab insulation at Liluan factory
  • Rock wool boards loaded into shipping container for international export from Liluan Technology factory

Description

Technical Diameters
Product Performance LL-RWBS-05 Unit Standard
Compressive strength ≥80 KPa GB/T 13480
Tensile strength (normal to surface) ≥200 KPa GB/T 30804
The average diameter of fibers ≤5 μm GB/T 5480
Shot content ≤4 % GB/T 5480
Thermal conductivity (25°C) ≤0.043 W/(m · k) GB/T 30802
Combustion performance Class A --- GB 8624-2012
Acidity coefficient ≥1.8 --- GB/T 5480
Hydrophobic rate ≥99 % GB/T 10299
Mass moisture absorption rate ≤1.0 % GB/T 5480
Short-term water absorption (24h) ≤0.5 kg/m² GB/T 30805
Noise reduction coefficient (NRC) ≥0.6 --- GB/T 18696.1
Dimensional stability ≤1.0 % GB/T 30806
Melting temperature ≥1000 °C ---
Thickness tolerance ±1 mm GB/T 5480
Flatness tolerance ≤2 mm GB/T 25975-2018

Product Advantages

1. Superior Impact Sound Insulation

The most significant benefit of multi-story buildings is the reduction of structure-borne noise. Rock wool's unique fiber matrix acts as a "spring," absorbing the energy from footsteps, moving furniture, or falling objects. When used in a floating floor system, it can significantly improve the acoustic rating (Impact Noise Reduction) between floors compared to rigid plastic foams.

2. High Compressive Strength and Resistance to "Creep."

Slab insulation must support the weight of the concrete screed, floor finishes, and all household furniture for decades. These boards are engineered to have high compressive resistance, ensuring that the floor does not "sink" or become uneven over time. It resists long-term deformation (creep), maintaining the structural integrity of the floor finish.

3. Radiant Floor Heating

Rock wool is an ideal partner for radiant floor heating systems. By providing high thermal resistance (R-value), it prevents heat from escaping into the structural slab or the room below. Instead, it reflects the heat upward into the living space, improving the response time and energy efficiency of the heating system.

4. Critical Horizontal Fire Barrier

In high-rise residential and commercial buildings, floors act as vital fire compartments. As a Class A1 non-combustible material, rock wool slab insulation provides a passive fire barrier between levels. It does not ignite or contribute to the spread of fire, providing extra safety for occupants and protecting the structural slab from high-heat damage.

5. Inorganic and Mold Resistant

Floors are susceptible to moisture from construction (such as curing concrete) or accidental leaks. Rock wool is inorganic and highly vapor-permeable, meaning it does not trap moisture and does not provide a food source for mold, mildew, or pests. This ensures a healthy indoor air quality and prevents the "musty" smells often associated with damp floor assemblies.

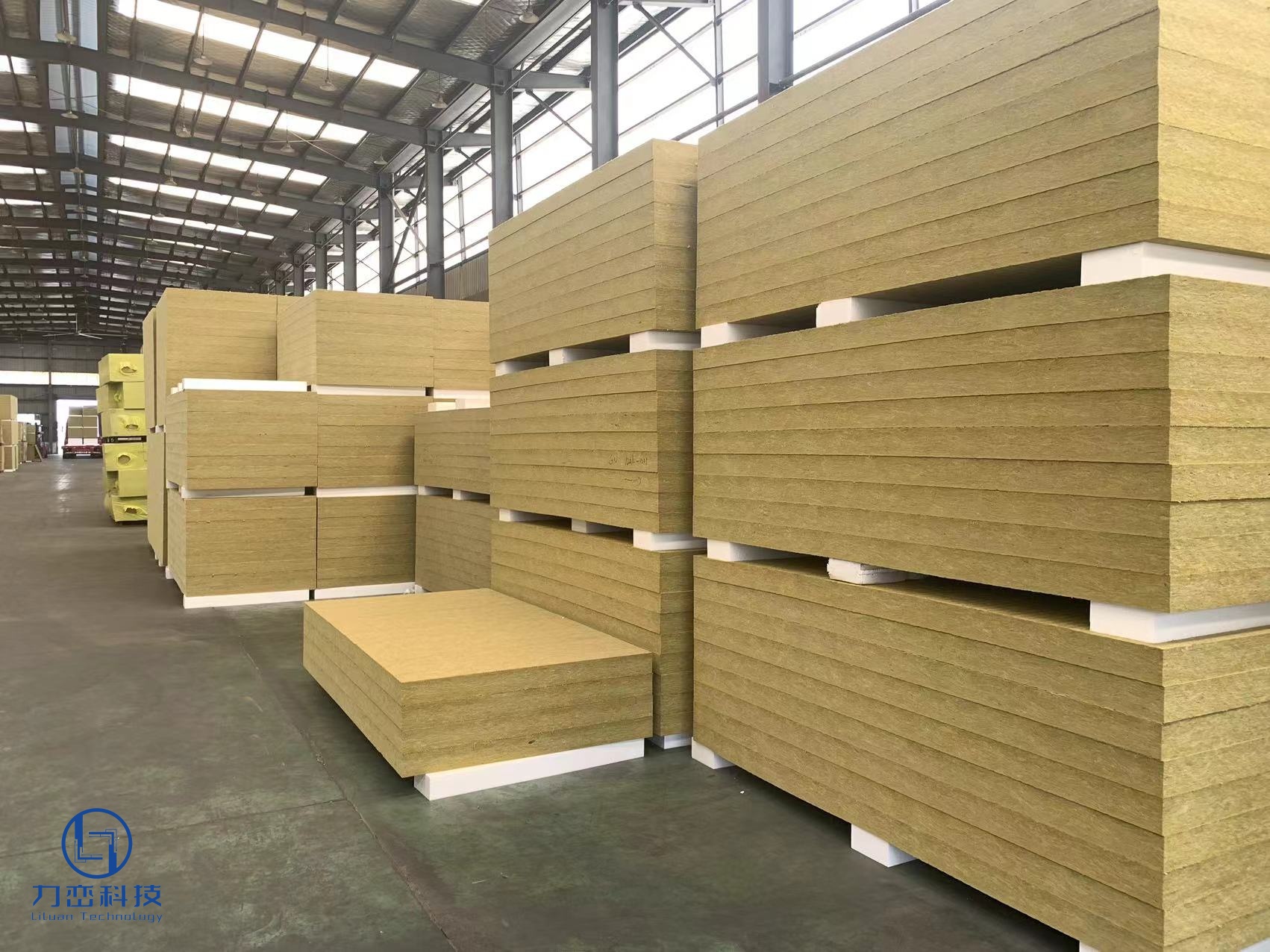

Large warehouse storage of high-density rock wool boards for slab insulation at Anhui Liluan Technology factory

About Us

  • Leading Rock Wool Manufacturer with Proven Industry Expertise
    Founded in 2009, Anhui Liluan Technology Co., Ltd. stands as a trusted name in mineral wool insulation manufacturing. We specialize in producing high-performance rock wool boards, blankets, and pipe insulation materials widely used in construction, industrial, and agricultural applications. With over 15 years of focused development, Liluan combines advanced manufacturing knowledge with strict quality standards, supporting global partners in achieving better thermal, fire, and sound performance.
  • Fully Integrated Production Lines Backed by Stringent Quality Control
    Our production base operates cutting-edge automated lines designed to maximize efficiency and ensure uniform quality. Each stage of the process—from raw material selection to final product packaging—is subject to rigorous inspections, meeting ISO 9001 and CE certification standards. Our integrated systems enable large-volume, custom-dimension production that adapts seamlessly to specific project requirements, ensuring both product performance and cost-efficiency.
  • Scalable Output with Global Market Reach
    With an annual output capacity sufficient to serve large-scale international contracts, Liluan is well-positioned to support long-term industrial supply chains. Our export network spans across Europe, the Middle East, Southeast Asia, and the Americas, reflecting a proven ability to deliver quality consistently and on time. Customers rely on our flexible logistics and responsive support team to simplify procurement and ensure reliability in every delivery.
  • Commitment to Sustainable Manufacturing and Customer-Centric Service
    Sustainability is embedded in our manufacturing processes—from energy-efficient kilns to the use of recyclable packaging. Our products enhance building insulation performance, contributing to energy conservation and carbon emission reduction. We offer personalized pre-sale consultation, technical support, and post-sale assistance, aligning every project with client goals. Whether you are sourcing for infrastructure, OEM supply, or retail channels, Liluan is your capable and responsible partner in insulation solutions.

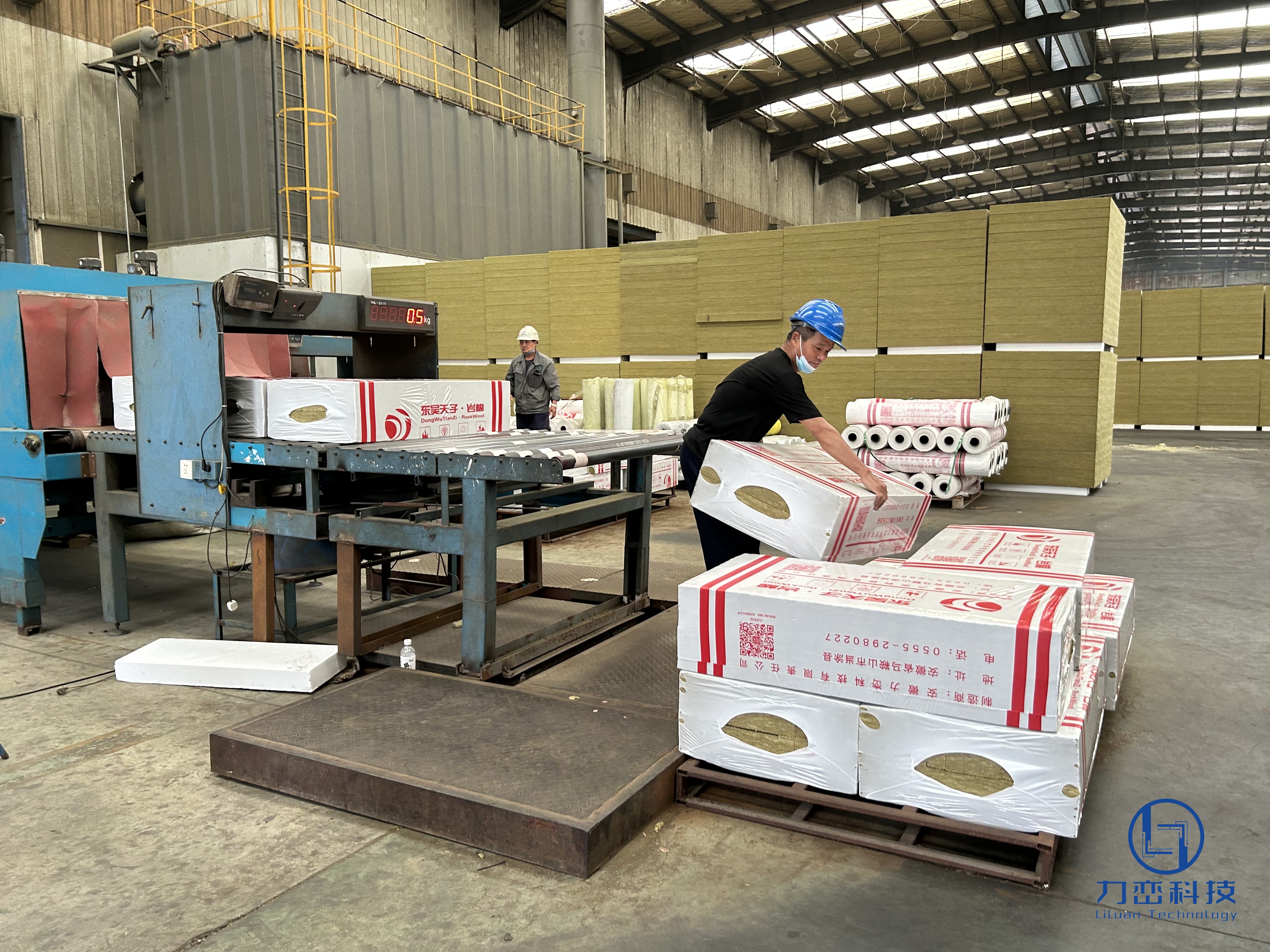

    Factory workers lifting and removing finished rock wool boards with Liluan logo packaging from the production line conveyor belt - real manufacturing process at Anhui Liluan Technology
Experience the reliability and excellence of Anhui Liluan Technology Co., Ltd. Contact us today to discuss how our rock wool insulation solutions can meet your project's specific needs.

FAQ

1. Who are we?
Anhui Liluan Technology Co., Ltd. is a specialized manufacturer of high-quality rock wool insulation materials, established in 2009, with a focus on delivering reliable solutions for various industries.

2. How can we guarantee quality?
Our advanced automated production lines, comprehensive quality control systems, and adherence to international standards ensure consistent and superior product quality.

3. What density is recommended for under-slab rock wool?
Typically, a density of 100k to 140k is used to provide sufficient compressive strength for flooring loads.

4. Can rock wool boards be used with radiant floor heating?
Yes, its high thermal resistance makes it an excellent insulator to direct heat upwards and prevent heat loss into the concrete slab.

5. What services can we provide?
We provide comprehensive services, including product consultation, customized design, efficient production, quality assurance, and reliable logistics support to ensure client success.

Proven Applications
Our rock wool slabs were successfully utilized in the Gansu Coca-Cola Production Plant Floor & Wall Systems
